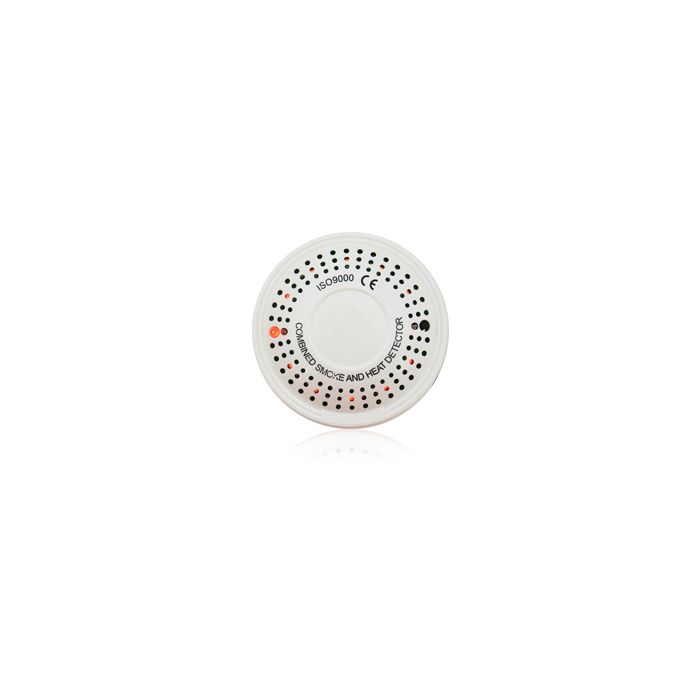

Asenware Conventional Smoke And Heat Detector With Flash And Buzzer
Features:
1. Strong Adaptability For Circumstance
2. SMT Design, High Stability
3. 40-60vdc Wide Voltage Operating Range
4. Low Standby Current
5. Power Supply Non-Polarized input
6. Twin Led For 360 Visual
7. Flashing Led Power Indicator
8. Remote Led Indicator Output(2-Wire)
9. Metal Shield. Anti-Electromagnetic Interference
Brand : ASENWARE
Model : AW-CSH832
Country of Origin: UK
Description :
AW-CSH832 is photo-electronic detector using a state-of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm control panel.
Technical Specification:
|
Operating Voltage Range |
9 to 28 VDC Volts Non-polarized |
|
Standby Current |
≤120µA@24VDC |
|
Maximum Alarm Current (LED On) |
≤20mA@24VDC (1K Ohm current-limiting resistance) |
|
Fix temperature Alarm |
57°C (135°F) A1R |
|
Rate of rise Alarm |
7.1°C/5S A1R |
|
Height |
48.2mm installed in base |
|
Diameter |
99.45mm |
|
Operating Humidity Range |
≤95%RH(40oC±2 oC) Relative Humidity, Non-condensing |
|
Operating Temperature Range |
-10 oC to 50 oC (14 oF to 122 oF) |
|
Smoke Alarm Sensitivity |
1.06± .26%FT |
