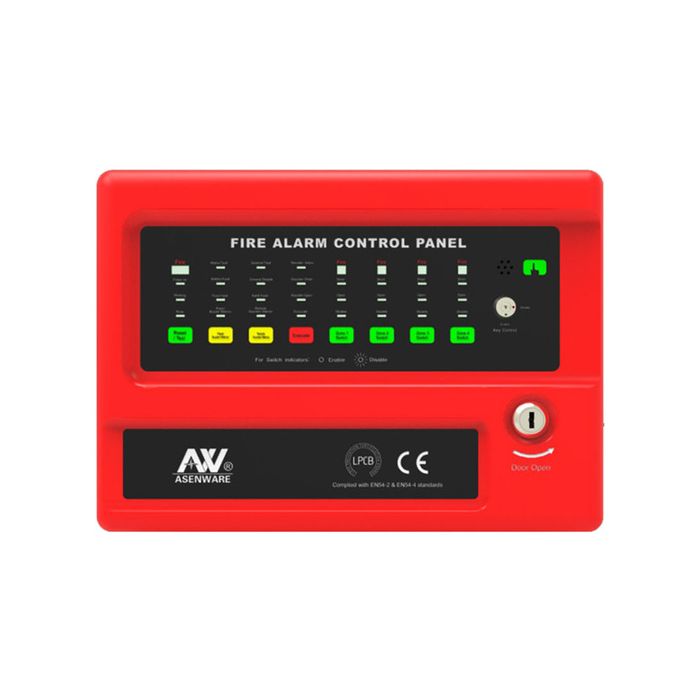

Asenware Conventional 8 Zone Fire Alarm Control Panel
Features:
It is modularized design, the panel can expend from 1 zone to32 zones easily
It has 2 level control mode by a lock
It has 24VDC and 5VDC power supply output.
It has FIRE and FAULT signal output
It has 2 general sounders output
Each zone has 1 circuit detectors Input
Each zone can be disable by a button
It has RESET button to reset the panel
It has SILENCE button to stop BUZZER and SOUNDERS
It has Evacuate button to start a manual fire alarm immediately
It has battery low protection function, When battery voltage lower than 21VDC , battery will be cut
Off automatically until the mains power is on.
It has optional GSM Module for fire alarm by SMS
Brand : ASENWARE
Model : AW-CFP2166-8
Country of Origin: UK
Description :
The AW-CFP2166 series conventional fire alarm panel is designed based on EN54 part 2＆4 standard. And it is the central part of the conventional fire alarm system, designed for applications requiring smoke detector, bell, manual pull stations, and sprinkler supervision. Each zone can be disabled by a button. The basic unit offers 1 to 8 zones of initiation, up to 16 zones for larger applications.
Technical Specification:
|
Item |
8 Zone Panel |
|
Model No. |
AW-CFP2166-8 |
|
Mains Supply Voltage |
110VAC or 240VAC |
|
Internal Power Supply |
27.2VDC |
|
Total output current limited |
3A @ 240VAC |
|
Batteries (Default Configuration ) |
12V2AH*2=24VDC in Total |
|
End of line Device |
6.8k Ω, 5% tolerance, 0.25W (color code-blue, grey, red , gold) |
|
End of line resistor value |
6.8k Ω, 5% tolerance, 0.25W (color code-blue, grey, red , gold) |
|
Dimension (mm) |
395*502*124mm |
|
Weight (Without batteries) |
7Kg |
|
Weight (With batteries) |
9.6Kg |
| Call for Price | Yes |
|---|---|
| Brand | Asenware |
