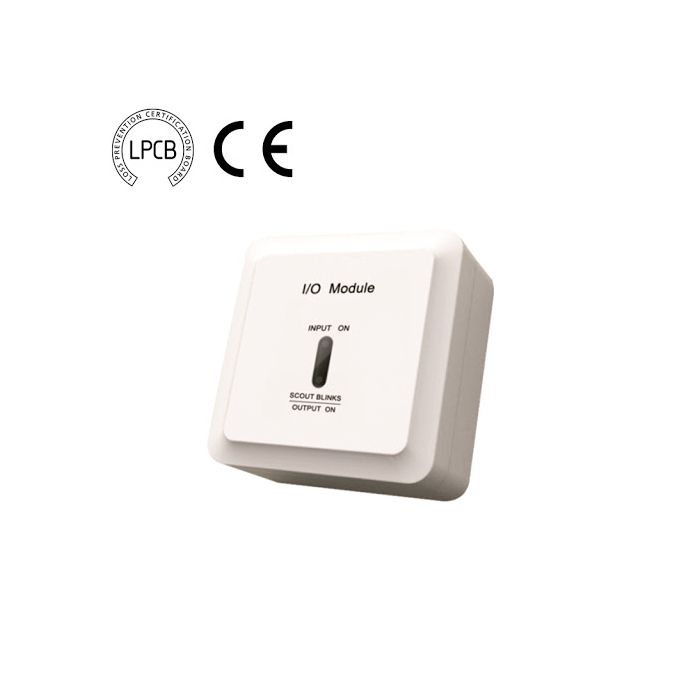

Asenware Addressable Fire Alarm System Input Output Module
- LPCB Approved
- Executive standard: EN54-18
- Operation voltage: loop DC24V (polarity-insensitive);power DC24V(polarity-insensitive)
- Quiescent current: loop current<0.8mA; power current<2mA
- Action current: loop current<5mA; power current<15mA
- Capacity of the output control contact: 1A@DC30V
Brand : ASENWARE
Model : AW-D319
Country of Origin: UK
The AW-D319 Addressable I/O Module (AW-D319 for short) is used with AW-FP300 fire alarm control panel. It is mainly used to realize an output control for fire linkage equipment (such as smoke dampers, blow valves and fire dampers) and receive the feedback signals of the fire linkage equipment so that a judgment on whether or not the fire linkage equipment is operating normally can be done.
Technical Specifications:
|
|
Signal Loop 24V(18V～28V) |
|
Standby Current |
Loop＜0.8mA ; Power＜2mA |
|
Action Current |
Loop＜5mA ; Power＜15mA |
|
Output Capacity |
1A@DC30V |
|
Input Mode Setting |
NC or NO input mode can be set by the jumper JP4. |
|
Programming Method |
Electronically addressed |
|
Code Range |
One address within 1~324. |
|
|
Inspection indicator: l blink once about every 12 seconds in the inspection status or remain lit in the output status; |
|
Operating Temperature |
-10℃～+55℃ |
|
Relative Humidity |
≤95% , non-condensing |
|
Material of Enclosure |
ABS |
|
|
86mm×86mm×41mm |
|
Mounting Hole Distance |
60.5mm |
|
Weight |
About 148g (with base) |
|
Certificate |
CE, LPCB |
