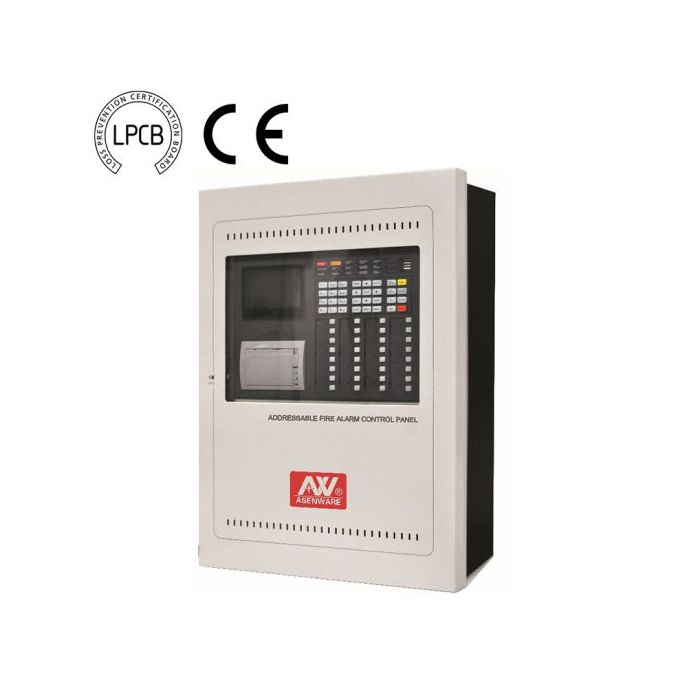

Asenware Addressable 04 Loop Fire Alarm Control Panel

$0.00

In stock

SKU

GCT10403

- LPCB Approved Product
- 4.3'' color-screen LCD
- Up to 324 addresses per loop
- Record capacity of 1000 historical events
- Integral printer
- U-disk interface for save of configuration
- Anti-tamper protection by a key lock
- Connection with up to 30 fire indicating panels

Details

Brand : ASENWARE

Model : AW-FP300

Country of Origin: UK

The purpose of the AW-FP300 Fire Alarm Control Panel (FACP) is to monitor input signals, give indications and possibly activate outputs as programmed. It is designed to comply with EN 54-2 with qualities of simple installation, operation and easy maintenance. The AW-FP300 panel is an addressable fire detection panel with 4 loop of 1296 addressable points and expansion capabilities. It is compatible with other peripherals made by ASENWARE with its own protocol.

Technical Specification:

Power supply
Mains supply				230VAC (-15%, +10%). 47 ~ 63Hz. Max current 0.8A
Mains fuse				T3.15AL250V
Operating voltage				18.5 ~ 30VDC
Recommended mains cable				Screened or standard/black mains cable, cable size 0.75mm2
Power rating				Imax.a=1.2A; Imax.b=2.6A; Imin=0.65A
Max. charging current				1.2A
Max. battery supply current				4A (when the Mains is disconnected)
Battery capacity, type and recommended model				Max. capacity 2×12V/17Ah; Min. capacity 2×12V/12Ah VRLA. PS-12170 for 17Ah (Power-sonic), PS12120 for 12Ah (Power-sonic)
Max. internal resistance of battery				1.5Ω
Battery fuse				F8AL250V
Recommended battery cable				14AWG
Quiescent current (full loaded)				< 0.4A
Outputs
S.C. Out (+, -)		Output voltage				18.5 ~ 30VDC
Max. output current				0.5A
Fuse rating				F1AL250V
End of line resistor				4K7
Recommended type of cable				Plain unscreened cable, 1.5mm2
Cable diameter				1mm2 ~2mm2
Transmission distance				≤1500m
Max. number of sounders @50mA				20
F.P.E. Out (+, -) F.A. Out (+, -)		Output voltage				18.5 ~ 30VDC
Max. output current				0.5A
Fuse rating				F1AL250V
End of line resistor				4K7
Recommended type of cable				Plain unscreened cable, 1.5mm2
Cable diameter				1mm2 ~2mm2
Transmission distance				≤1500m
Fault Out (NC, COM, NO)		Contact capacity				30VDC@2A, 125VAC@0.5A
Recommended type of cable				Plain unscreened cable, 1.5mm2
Cable diameter				1mm2 ~ 2mm2
24VK (+, -)	Output voltage				18.5 ~ 30VDC
Max. output current			0.6A
Fuse rating			F1AL250V
Recommended type of cable			Plain unscreened cable, 1.5mm2
Cable diameter			1mm2 ~2mm2
Input
Class change (+, -)	Input mode				Passive
Cable resistance			≤500Ω
Recommended type of cable			Plain unscreened cable, 1.5mm2
Cable diameter			1mm2 ~2mm2
Loop
Loop Out (+, -) Loop In (+, -)	Output voltage				16.5 ~ 30VDC, pulse
Output current			0 ~0.3A
Loop type			Class A
Recommended type of cable			Screened or unscreened twisted-pair, 1.5mm2
Transmission distance			≤1000m
Cable diameter			1mm2 ~2mm2
Network communication
RS-485	Max. number of FIPs				30
Transmission rate			9600 bps
Recommended type of cable			Screened or unscreened twisted-pair, 1mm2
Transmission distance			≤1000m
Cable diameter			1mm2 ~5mm2
CAN	Max. number of panels				20
Transmission rate			Optional: 10K, 20K, 50K and 100K bps
Recommended type of cable			Screened or unscreened twisted-pair, 1mm2
Transmission distance			≤1000m
Cable diameter			1mm2 ~5mm2
Physical dimensions
Approx. Dimensions of the panel (W×H×D)			430×560×170mm
Approx. weight (without battery)			14kg
Operating conditions
Temperature range: 0°C~45°C; Max relative humidity: 95% (40°C ±2°C, no condensation)
