Anviz OC500 RFID Time Attendance and Access Control

OC500 RFID Time Attendance and Access Control

Description: OC500 proximity card time attendance and access control is standard USB Device, USB Host, TCP/IP, optional RS232. Dry contact, Wiegand26 input, and output. 6-digit work code, 15 groups, 32 time zones, 30 bell schedulers, and 50 short messages. OC500 has a standard TCP/IP module. It has multiple identification methods such as card only, ID+password, password+card. Two in one: time attendance and access control function. Clear voice prompts along with all operations.

Anviz OC500. Access control and presence of Anviz terminal. ID by RFID EM/MIFARE 125KHz card, ID, password, and combinations. 20.000 cards, 200.000 regs. 1 relay output. Wiegand output. TCP/IP, USB host, Mini USB. 8 self-defined states. Door sensor, switch, input/output Wiegand 26. 12V DC. Oc500 metal RFID/Mifare time attendance & access control.

Time Attendance and Access Control Management System

Employee Management: Unify Employee management.

Device Management: Quick Add, Easy Setting.

Shift Management: Manual and intelligent shift schedule.

Export Management: Flexible and Practical Report output.

Anviz OC500 Feature

1. Texas Instruments 32-bit high-speed CPU of low power consumption,
2. Clear voice prompts along with all operations,
3. USB Plug & Play connection. No driver needed,
4. TCP/IP connectivity,
5. USB pen drive data download,
6. Real-time data transfer and WEB online tracking,
7. Optional13.56MHZ Mifare or HID card reader,
8. Various employee authentication methods,
9. Easy combination of password and card,
10. 16 different customizable time and attendance status,
11. 6-digit work code to calculate different job cost,
12. Public and private short message display,
13. Support 12V power supply for electric/magnetic locks,
14. Relay output for easy integration with bell ring or electric/magnetic lock system,
15. Advanced access control with 16 groups and 32 time zones available
16. Standard Wiegand output for seamless integration with access controller,
17. Wiegand input to connect external fingerprint, card or keypad reader,
18. Support multiple display and software language.

Anviz OC500 Parameter

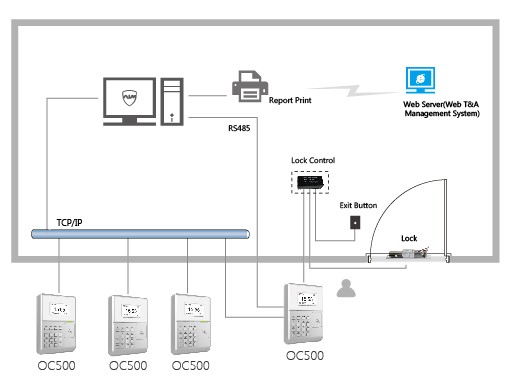

OC500 RFID Application
