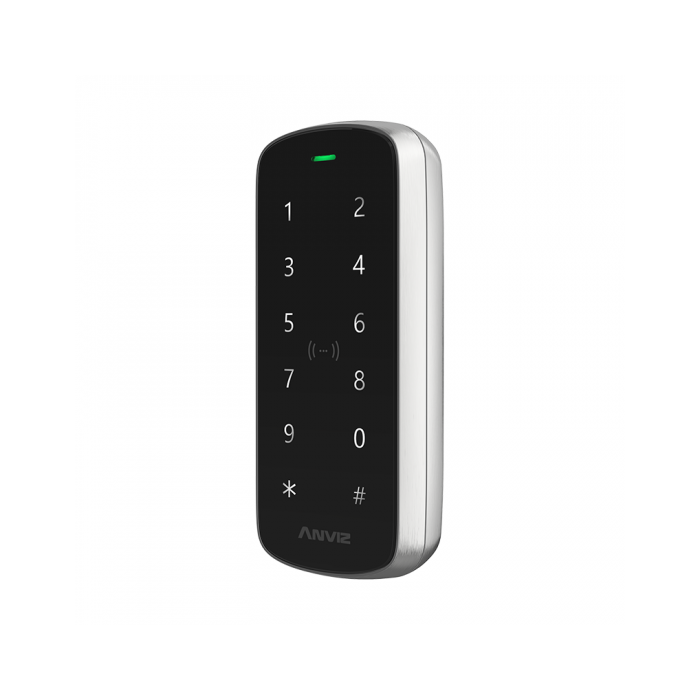

Anviz M3 Pro Professional Outdoor RFID Access Control Terminal
- IP65 Waterproof Design
- IK10 Vandal Proof Design
- Touch active keypad
- Bluetooth magic shake open
- Dual-frequency RFID card identification
- Less than 0.5 second comparison time
- Standalone access control functions
- Relay and Wiegand Output, access controller, and reader all in one
- Door contact sensor, alarm output, and tamper alarm output
Anviz M3 Pro RFID Waterproof Access Control Reader
DESCRIPTION: M3 Pro is a metal casing, IP65 water-proof design compact access control device, suitable for outdoor applications. It supports a 13.56MHZ Mifare card and a 125KHZ EM card dual-frequency module. The touch backlit keypad supports TCP/IP and RS485 communication convenient for customers to use. The M3 Pro has both a built-in relay for direct lock and standard Wiegand output, which can be work as a standalone access controller and the RFID reader.
The Anviz M3 Outdoor RFID Access Controller is a waterproof and compact access control device that complies with ISO14443 contactless card standards and supports 125KHZ EM cards and tags. The touch backlit keypad supports TCP/IP and RS485 communication convenient for customers to use. The M3 both with a built-in relay for direct lock and standard Wiegand output can work as a standalone access controller and RFID all-in-one device.
Anviz M3 Pro Feature
|
Capacity |
Max 10000 Users |
|
Log Capacity |
Max 50,000 Logs |
|
Password |
4-6 Digit Password |
|
Card Read Range |
≥40mm (Mifare and EM) |
|
Identification Mode |
Password/Card |
|
Communication Port |
Standard TCP/IP and RS485 |
|
Wiegand Protocol |
Support Standard Wiegand Output |
|
User Interface |
Door Contact Sensor, Alarm Output and Tamper Alarm |
|
I/O |
Door Contact Sensor, Alarm Output and Tamper Alarm |
|
Management |
Operations Managed by Keypad and Crosschex Lite Management Software |
|
RFID Card |
ISO14443A 13.56MHZ Mifare Card, NFC, Mifare Pro and DesFire (Optional 125KHZ EM Card) |
|
Operating Voltage |
DC 12V |
|
Operating Temperature |
-40°C to 60°C |
|
Size ( WxHxD ) |
47*124*22mm |
|
Certificate |
CE, FCC, RoHS |

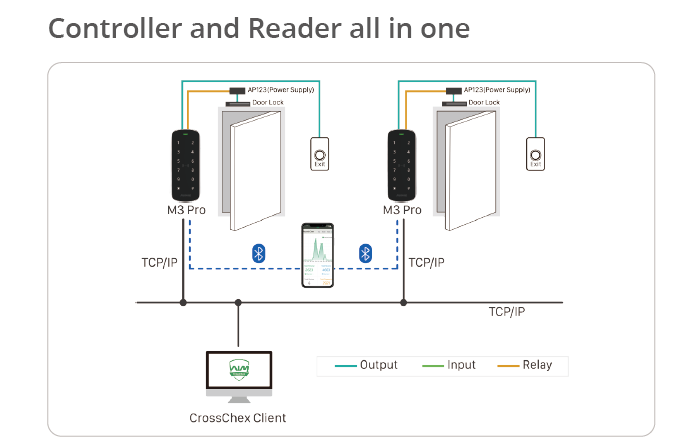

Anviz M3 Pro System Application
