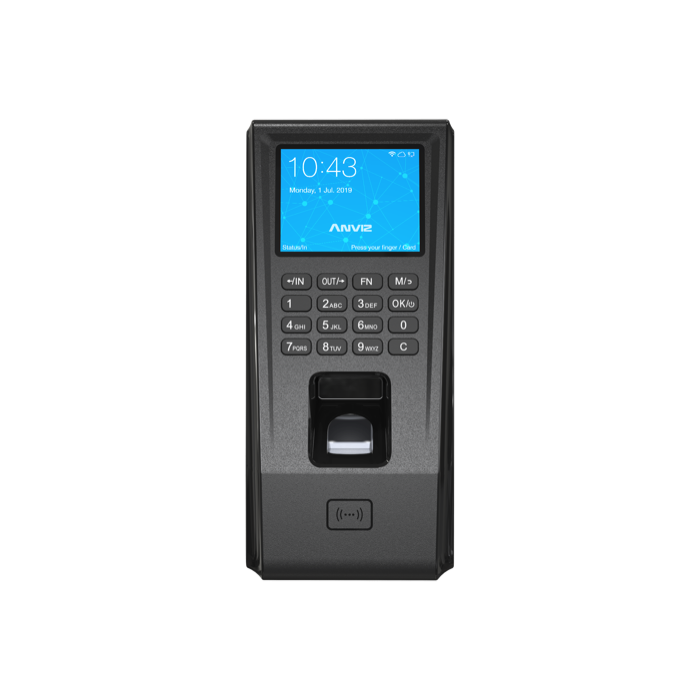

Anviz EP30 IP Fingerprint and RFID Access Control Terminal
- 1Ghz Linux Based High Speed CPU
- Max 3,000 Users, 50,000 Records
- Touch On Active Fingerprint Sensor
- Identification time less than 0.5 second
- Optional EM Card, Optional Mifare Card
- TCP/IP, RS485, Mini USB, Optional Wi-Fi
- Card Reading Distance 1-5cm (125KHz, 13.56MHz >2cm) for standard CR80 card
- Operating Temperature oC: -25 ~ +70 C (-13 ~ +158 F)
- Operating Humidity %: 10 ~ 90
- Voltage: 12 V DC
EP30 is new generation IP based access control terminal. With fast linux based 1Ghz CPU and latest BioNANO® fingerprint algorithm, EP30 ensures a less than 0.5 second comparison time under 1:3000 statuses. The optional Wi-Fi functions realize the flexible installation and operation. The Web-server function realizes easily self-management of the device.
Anviz EP30 Features:
- The new Linux based 1Ghz processor ensures the 1:3000 comparison time less than 0.5 second
- The Colorful LCD screen ensures the best interaction and user experiences and can also provide clear notifications to the users.
- The WiFi function ensures power on to work, and realize the flexible installation of the device.
- The big physical keypad ensures the best user experiences and easily to use for all people around the world
- The touch active sensor ensures the quick response for each detection and saving the total power consumption of the device.
- The Webserver ensures the easily quick connection and self management of the device.
Specifications:
|
Capacity |
|
|
Fingerprint Capacity |
3,000 |
|
Card Capacity |
3,000 |
|
Log Capacity |
50,000 |
|
Inferface |
|
|
Comm |
TCP/IP, RS485, Mini USB, Optional Wi-Fi |
|
Feature |
|
|
Identification mode |
Finger, Password, Card(Optional EM, Mifare Module) |
|
Card reading distance |
1~5cm ( 125KHz), 13.56MHz >2CM ) for standard CR80 card |
|
Interfaces |
Wiegand in & out, Relay out, Door contact, Exit button,Door bell |
|
Identification speed |
<0.5s |
|
RFID Card |
Optional EM, Optional mifare |
|
Working Temperature |
-25°C~70°C |
|
Humidity |
10% to 90% |
|
Power |
DC12V |
|
WebServer |
Support |

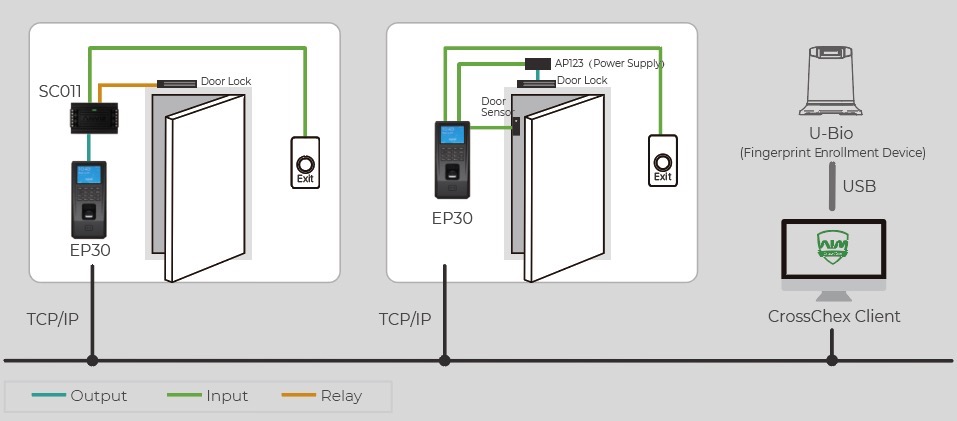

Application

| Call for Price | Yes |
|---|---|
| Brand | Anviz |
