Anviz C2C RFID Time Attendance Device
- Make: Anviz
- Model Code: C2C
- Standalone PC Networked
- Tags or Fobs c/w Cards
- Keypad Included
- Daylight Saving
- Self-Service Record Inquiry
- TCP/IP

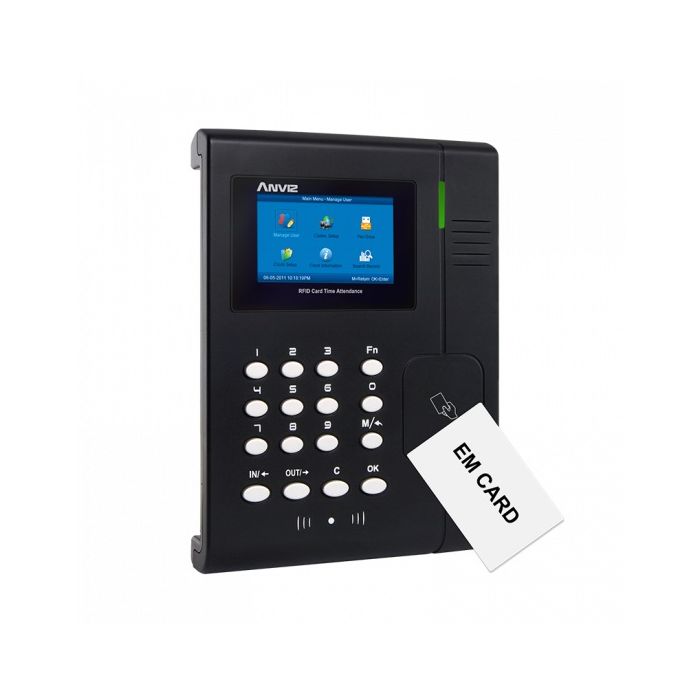

C2C RFID Time Attendance Device
Description: Anviz C2C is the RFID time attendance system designed for medium to large size businesses. It integrates High Definition TFT LCD and ARM system platform to ensure terminals performance stable. C2C has an ultra-slim design with a thickness of only 3cm, which makes it extremely elegant on the wall. Stylish 3" widescreen High Definition TFT display can show multi-languages for the different local markets. standard RFID reader, optional Mifare card reader is specially designed for the existing card users and higher security level. In addition, with a unique Fn button, users can have great convenience to manage complicated custom-defined job codes or time attendance status in practical situations.
Users simply wave their individual cards in front of the machine to punch in or out etc. Combined with our trusted Clock Reports XE software there is no better performance RFID card solution available for managing staff! This system mounts on your wall and requires a nearby mains power socket for the supplied power adapter. You can interface with our XE computer software by USB cable, network cable, or standalone download to a USB flash memory pen drive.
Anviz C2C RFID Feature
- Extremely thin and refined design.
- 3" widescreen High Definition TFT display.
- User-friendly graphic interface.
- Support multiple display and software language.
- Clear voice prompts along with all operations.
- USB Plug & Play connection.
- Easy TCP/IP connectivity.
- Real-time data transfer and WEB online tracking.
- Inbuilt RFID reader, Optional Mifare card reader.
- 12-digit user ID and user name display.
- 16 different customizable time and attendance status.
- Auto time and attendance status switch.
- 6-digit work code to calculate different job costs.
- Public and private short message display.
- Auto daylight saving.
- Employee self-service record inquiry.
C2C Time Attendance Parameter
|
Capacity |
|
|
Card Capacity |
20,000 |
|
Log Capacity |
200,000 |
|
Inferface |
|
|
Comm |
USB Device, USB Host, TCP/IP |
|
Feature |
|
|
Identification Mode |
Card,ID+PW, PW+Card |
|
Identification Speed |
<80ms |
|
Card Reading Module |
125KHZ EM RFID,Optional 13.56MHZ Mifare |
|
Name Display |
Yes |
|
Photo Display |
Yes |
|
Fingerprint Image Display |
Yes |
|
Self-defined Status |
16 customizable time and attendance status |
|
Auto Status Switch |
Yes |
|
Work code |
6-digit |
|
Short Message |
50 |
|
Daylight saving |
Yes |
|
Self-service Record Inquiry |
Yes |
|
Hardware |
|
|
LCD |
3"widescreen High Definition TFT display |
|
Size |
140(w)*190(h)*30(d)mm |
|
Temperature |
-10℃~40℃ |
|
Operating Voltage |
DC 5V |
|
Certificates |
FCC, CE |
|
Applicable Situation |
Up to 10000 Employees |

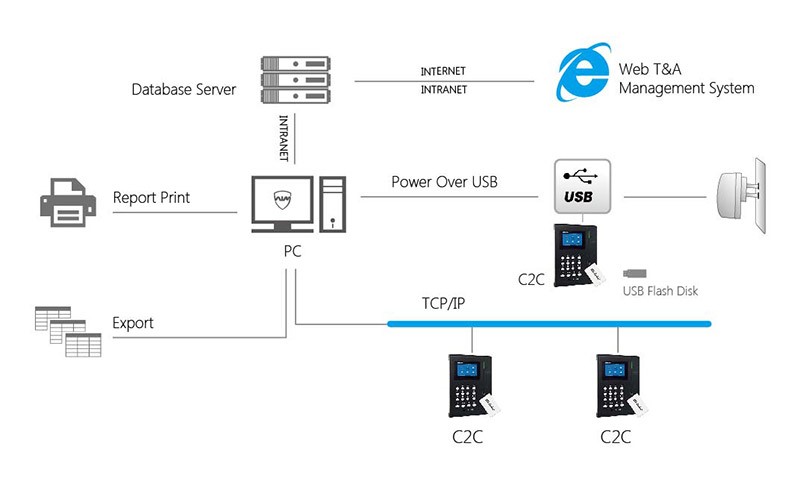

Anviz C2C Time Attendance Application

| Call for Price | Yes |
|---|---|
| Brand | Anviz |
