Adhesive LED Film Screen
Adhesive LED Film Screen
Pixel Pitch: P4 mm, P5 mm, P6 mm, P8 mm, P10 mm, P16 mm, P20 mm, P30 mm
Pixel Density: ~62,500 dots/m² (P4), ~40,000 dots/m² (P5), ~27,778 dots/m² (P6)
Transparency: > 85% (standard), up to ~95% in larger-pitch models
Module Size: 1000 × 240 mm or 1200 × 240 mm
Thickness: ~3 mm
Weight: ≤ 3.5 kg/m²
Brightness: ~3,000 cd/m²
Adhesive LED Film Screen

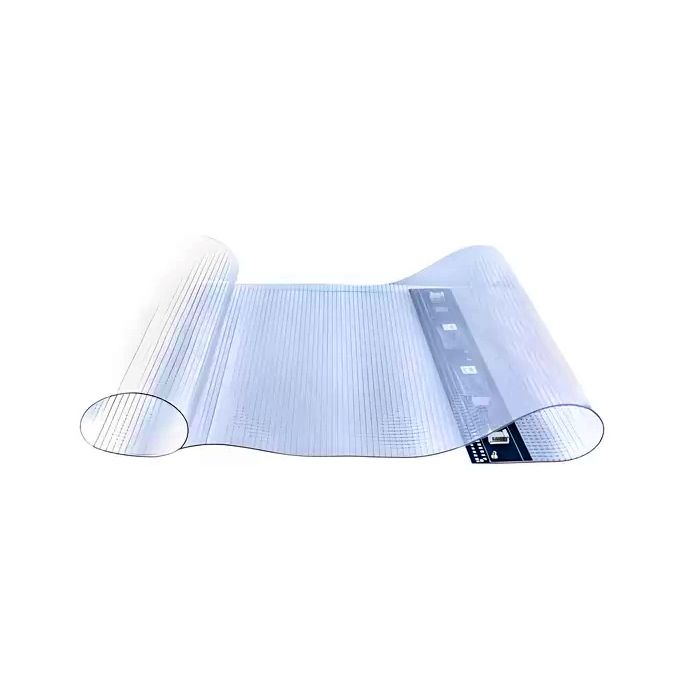

The Adhesive LED Film Screen offers an ultra-thin, self-adhesive transparent LED film solution available in pixel pitches from P4, P5, P6, P8, P10, P16, P20 to P30, designed for creative glass-wall, retail window and architectural installations. With a transparency rate of over 85 %, minimal structural support requirements and easy stick-onto-glass installation, this product transforms glass surfaces into dynamic full-colour LED displays without obstructing the view behind them.
Key Features
-
Wide pixel-pitch options (P4-P30) to match varied viewing distances and budgets.
-
High transparency (>85%) so the film integrates with glass and maintains visibility of background architecture.
-
Ultra-light weight and slim profile (screen thickness ~3 mm; weight ≤ 3.5 kg/m²) for simple installation on glass or transparent surfaces.
-
Self-adhesive installation: film can be directly pasted onto cleaned glass, reducing installation labor and cost.
-
Flexible installation options, including curved glass façades, shop windows and creative shaped displays.
-
High brightness and refresh rate to ensure vivid visuals and smooth motion video even in ambient light.
-
Robust lifetime and serviceability: rated for ≥ 100,000 hours typical, designed for long-term use.
-
Customisable sizes and pixels: module size typically 1000×240mm (or 1200×240mm) allowing flexible video wall configurations.
Technical Specification
|
Parameter |
Specification |
|
Pixel Pitch |
|
|
Pixel Density |
~62,500 dots/m² (P4), ~40,000 dots/m² (P5), ~27,778 dots/m² (P6) |
|
Transparency |
|
|
Module Size |
1000 × 240 mm or 1200 × 240 mm |
|
Thickness |
~3 mm typical |
|
Weight |
≤ 3.5 kg/m² (for most models) |
|
Brightness |
~3,000 cd/m² (typical) for P4-P10 range |
|
Grey Scale |
≥ 16 bit |
|
Refresh Rate / Drive Mode |
Static drive, high refresh (e.g., 3,840 Hz+) |
|
Maximum Power Consumption |
1,200 W/m² |
|
Average Power Consumption |
~450 W/m² |
|
Operating Environment |
0 °C – +60 °C typical; storage –20 °C to +65 °C |
|
Lifetime |
≥ 100,000 hours |
* Note: Actual specifications may vary by model and manufacturer—please verify with specific datasheet/vendor.
| Call for Price | No |
|---|---|
| Brand | Varito |
