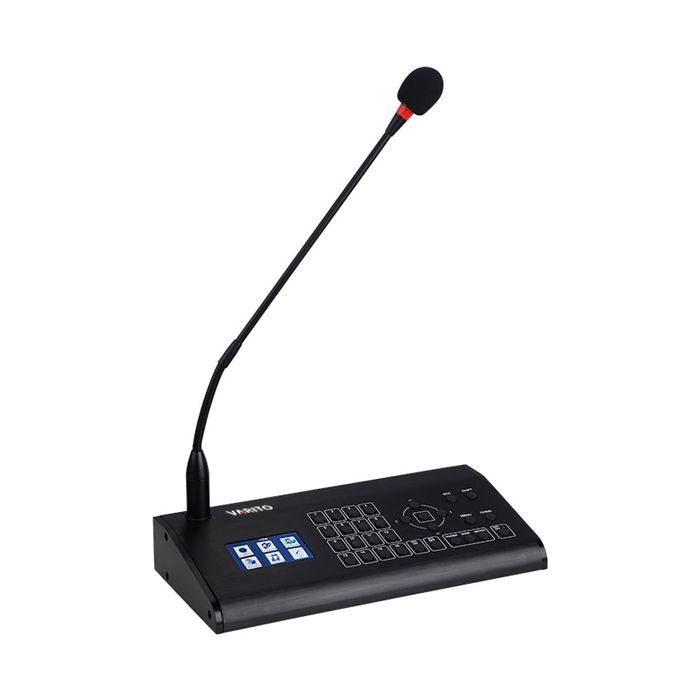

32 Zone Paging Microphone
32 Zone Paging Microphone
Brand : VARITO
Model : VRT-32PG
Country of Origin: Germany
Manufacture From: China
Special Features:
1 Year Service Warranty
Expert Technical Team Support
24x 7 Online Support
100% Quality Assured
Service all over Bangladesh
3.0-inch color screen display, integrated MP3 media player, chime generator and support for local AUX input, The RJ45 interface connects the network cable to the host to remotely control the on-demand host program, control the host partition and power supply etc.
The RS485 control protocol is adopted, and the last-in, first-out mechanism can be used to connect up to 16 units hand in hand, The full action of the host system can be controlled remotely through this program-controlled microphone, The local MP3 player comes with more than 2G memory, and can plug in
the SD card, Local microphones, local MP3 decoding and local AUX inputs can be transmitted to the host output over a distance of more than 500 meters.
| Item NO. | VRT-32PG |
| Microphone input (MIC) | MIC: 600 ohms (Ω) 5mV, unbalanced |
| Line input: LINE | LINE: 10k ohms (Ω) 10V, balanced |
| Line output | 10k ohms (Ω)0.775V (0 dB), unbalanced |
| Frequency Response | MIC, LINE: 60 Hz to 16k Hz (± 1 dB) |
| Nonlinear Distortion | THD <0.5% at 1kHz |
| Signal noise ratio S/N | >70 dB |
| The number of zones can be controlled | 16 channels "CH1 to CH16" |
| Number of control devices | 8 DCI-10P |
| The maximum configuration of the system | 5 Units |
| Partition output control | You can manually choose to activate any partition |
| Machine size | 78(H) × 205 (W) × 178 (D)mm |
| Function control |
Volume adjustment one, device selection key 8, partition manual selection key 32, One full on, one full key, one power switch, one address setting switch, one lock key, |
| The indicator light | Partition status indicator CH1 to CH32, equipment selection indicator 16, 1 microphone on status light |
| Power consumption | 5 to 10W |
| Machine size | 70(H) x 238 (W) x 170 (D) mm |
| Power supply (DC) | DC 24V |
| Net weight | 2.3Kg |
| Call for Price | Yes |
|---|---|
| Brand | Varito |
