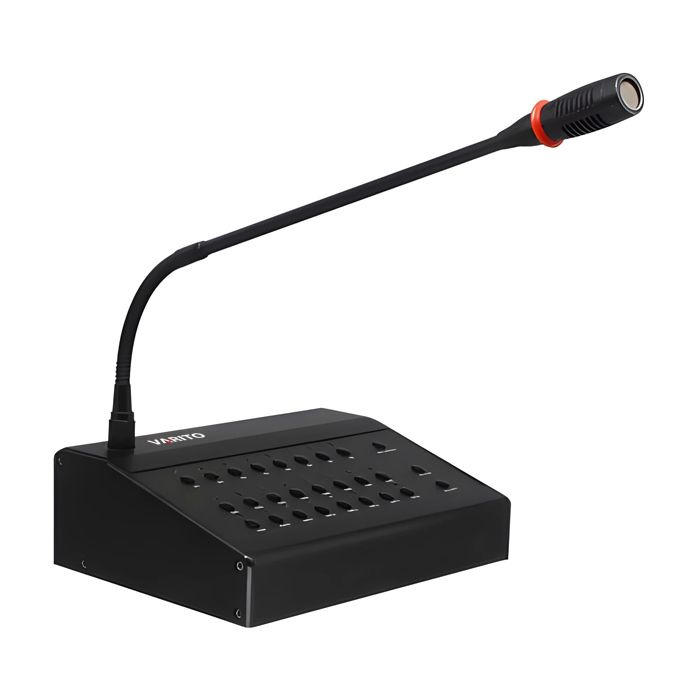

16 Zone Remote Paging Microphone
16 Zone Remote Paging Microphone
Brand : VARITO
Model : VRT-16PG
Country of Origin: Germany
Manufacture From: China
Special Features:
1 Year Service Warranty
Expert Technical Team Support
24x 7 Online Support
100% Quality Assured
Service all over Bangladesh
In conjunction with RT-16ZC partition pager, 8 RT-16ZC can be paged, up to 128 districts, There are 16 partition pager buttons and the audio signal is transmitted in a balanced way, Use twisted pair wire as the distance transfer medium, remote control distance of up to 1KM, 5 remote control partitions/pager microphones can be cascaded, The pager volume can be adjusted, The function keys are aluminum and light-touch soft-key control switches, With bell prompt and silent switch function, It has a zone-wide on/off control function to facilitate users to conduct district-wide pager broadcasts.
| Item NO. | VRT-16PG |
| Microphone input (MIC) | MIC: 600 ohms (Ω) 5mV, unbalanced |
| Line input: LINE | LINE: 10k ohms (Ω) 10V, balanced |
| Line output | 10k ohms (Ω)0.775V (0 dB), unbalanced |
| Frequency Response | MIC, LINE: 60 Hz to 16k Hz (± 1 dB) |
| Nonlinear Distortion | THD <0.5% at 1kHz |
| Signal noise ratio S/N | >70 dB |
| The number of zones can be controlled | 16 zones "CH1 to CH16" |
| Number of control devices | 8 DCI-10P |
| The maximum configuration of the system | 5 Units |
| Partition output control | You can manually choose to activate any partition |
| Machine size | 78(H) × 205 (W) × 178 (D)mm |
| Function control |
Volume adjustment one, device selection key 8, partition manual selection key 16, One full on, one full key, one power switch, one address setting switch, one lock key, |
| The indicator light | Partition status indicator CH1 to CH16, equipment selection indicator 8, 1 microphone on status light |
| Power consumption | 5 to 10W |
| Machine size | 70(H) x 238 (W) x 170 (D) mm |
| Power supply (DC) | DC 24V |
| Net weight | 2.3Kg |
| Call for Price | Yes |
|---|---|
| Brand | Varito |
