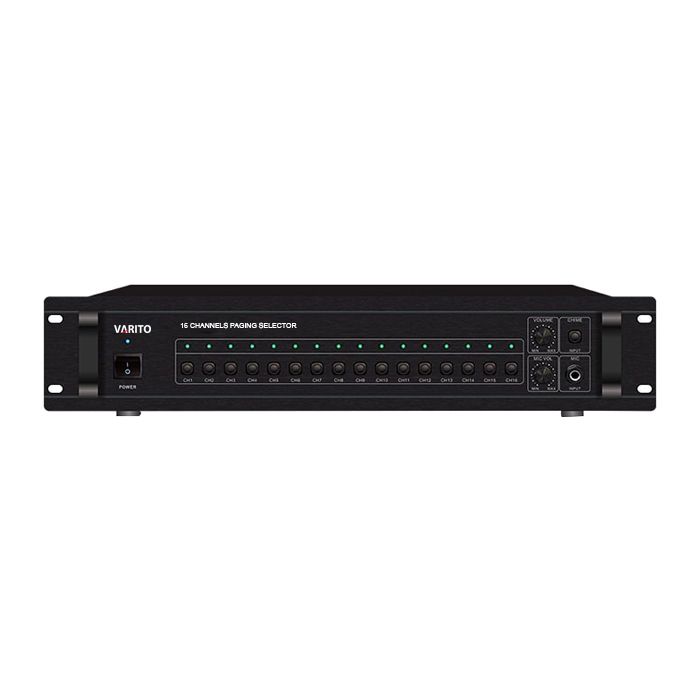

16 Zone Paging Controller
16 Zone Paging Controller
Brand : VARITO
Model : VRT-10PG
Country of Origin: Germany
Manufacture From: China
Special Features:
1 Year Service Warranty
Expert Technical Team Support
24x 7 Online Support
100% Quality Assured
Service all over Bangladesh
High-grade aluminum 2U black oxide pull panel, beautiful and generous. 16 partition pager alarm functions. 1 microphone input, 4 remote control microphone inputs, 1 line, 1 emergency input * Remote audio/control signals using high-quality balanced transmission technology. Each pager channel LED status indication. Built-in bell generator with silent sound function. 25-pin computer activation interface, low-level alarm activation output. The manual paging function can be performed by pressing the buttons on the panel * MIC volume adjustment, output volume can be adjusted.
| Item NO. | VRT-16ZC |
| Microphone input (MIC) | MIC: 600 ohms (Ω) 5mV, unbalanced |
| Line in (LINE) | 10k ohms (Ω) 200mV, unbalance |
| Line output | 10k ohms (Ω) 0.775V (0 dB), unbalanced |
| Frequency Response | 60 Hz to 15k Hz (± 3 dB) |
| Nonlinear Distortion | THD <0.01% at 1kHz |
| Signal Noise Ratio S/N | >70 dB |
| The alarm activates the input | A set of 'ALARM IN (CH1 to CH16)' |
| The alarm activates the export and export | A set of 'SWITCHING OUT (CH1 to CH16) |
| Alarm Activation | Low level activation (0V) |
| Level Selection | 'HIGH'/'LOW' is selected by active LEVEL setting switch |
| Silent Suppression | MIC, LINE signal attenuation 0 to 30 dB when EMC inputs |
| Power Supply | AC 220V ± 10% 50-60Hz |
| Power Consumption |
10 to 15W |
| Machine Size | 89(H) × 483 (W) × 350 (D) mm |
| Net wWeight | 6.32kg |
| Call for Price | Yes |
|---|---|
| Brand | Varito |
